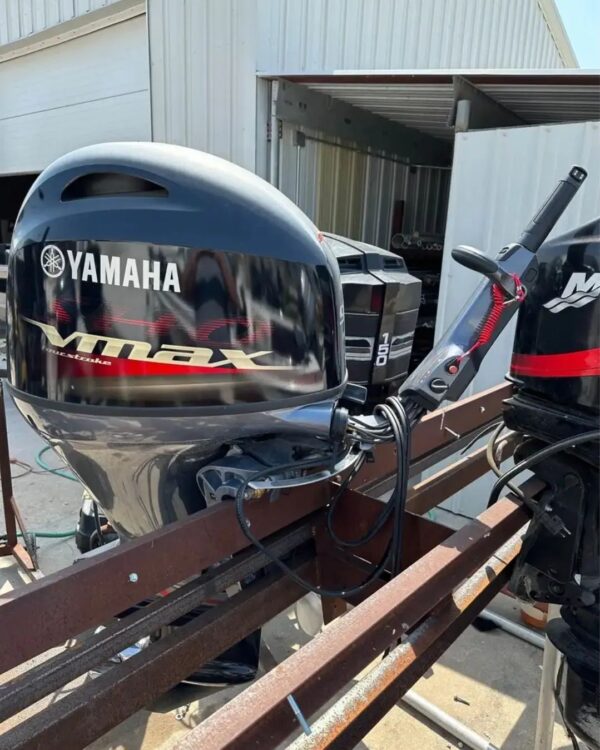

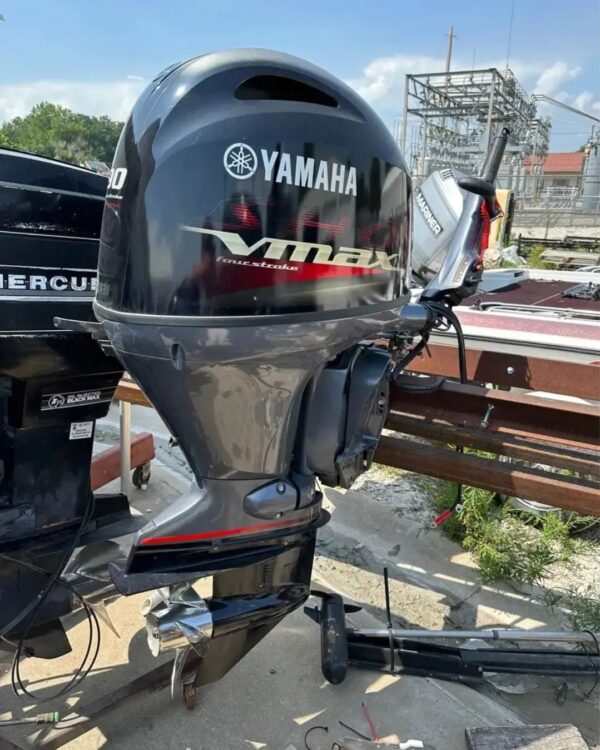

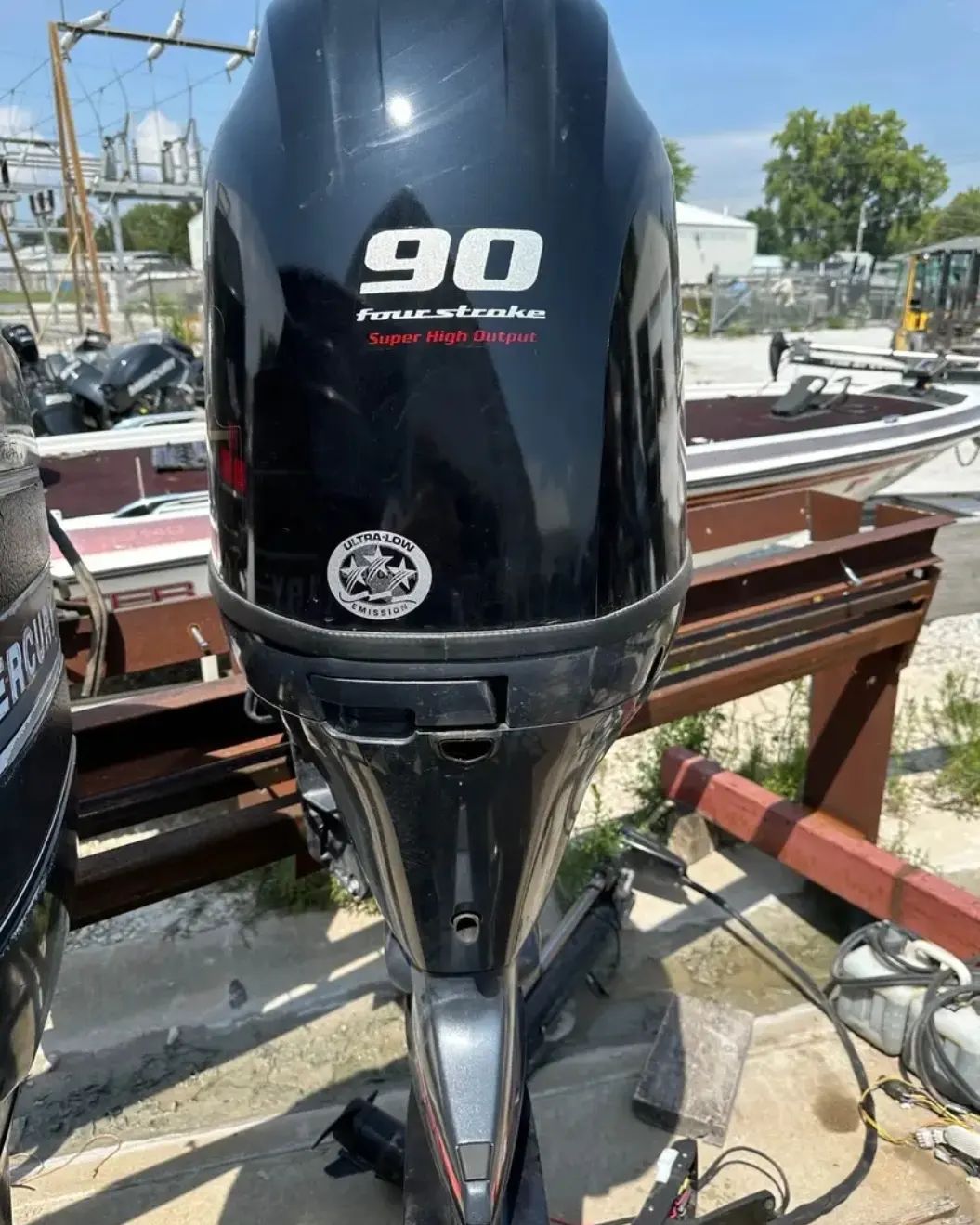

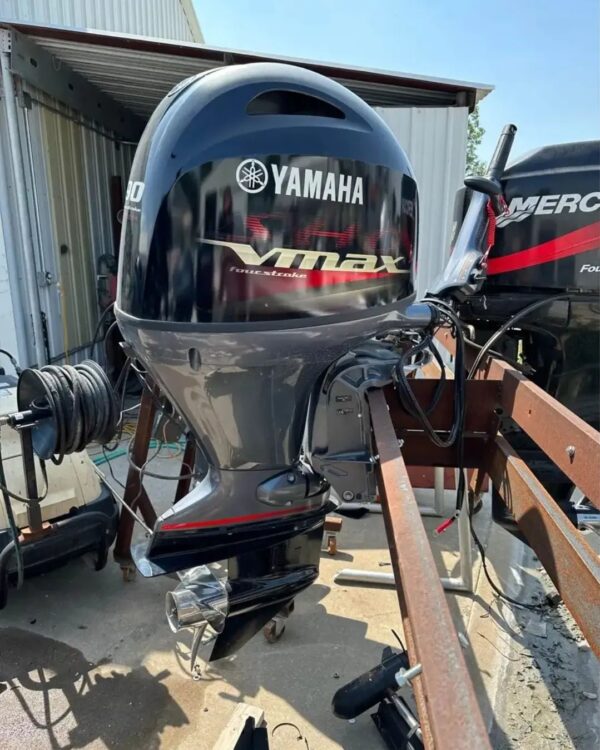

Used 2023 Yamaha 90 HP VMAX SHO Outboard Motor – 20" Shaft – Tiller Steer

PRODUCT DESCRIPTION

Upgrade your boat with the performance and reliability of a 2023 Yamaha 90 HP VMAX SHO outboard motor. This modern Yamaha VF90 VMAX SHO features a 1.8-liter inline-4 four-stroke engine with electronic fuel injection, Variable Camshaft Timing, and DOHC technology. Yamaha rates the VF90 at 90 HP at 5,500 RPM, with a full-throttle operating range of approximately 5,000–6,000 RPM. This particular motor has a 20" shaft and tiller-steer configuration, making it an excellent option for compatible fishing boats, aluminum boats, bass boats, utility boats, and other vessels designed for tiller-operated outboards. A major advantage is that the engine still has factory warranty remaining, providing additional confidence compared with older used outboards.

PRODUCT HIGHLIGHTS

• 90 HP Yamaha VMAX SHO
• 2023 Model Year
• 20" Shaft
• 1.8L Inline-4 4-Stroke
• Electronic Fuel Injection (EFI)
• Variable Camshaft Timing (VCT)
• DOHC 4-Valve Cylinder Head
• Tiller-Steer Configuration
• Electric Start
• Power Trim & Tilt
• 35-amp charging output
• VMAX SHO performance styling
• Remaining Factory Warranty
• Complete ready-to-mount-and-run package
• FREE USA SHIPPING
• $350 Flat-Rate International Shipping
• Customer pickup available

TECHNICAL SPECIFICATIONS

Specification	Details
Brand	Yamaha
Model	VF90 VMAX SHO
Horsepower	90 HP
Year	2023
Engine Type	4-Stroke
Cylinders	Inline 4
Displacement	1.8L / 1,832 cc
Fuel System	Electronic Fuel Injection
Valve Configuration	DOHC, 4 Valves per Cylinder
Variable Camshaft Timing	Yes
Full-Throttle RPM	5,000–6,000 RPM
Maximum Power RPM	5,500 RPM
Shaft Length	20"
Starting System	Electric
Steering	Tiller
Trim & Tilt	Power Trim & Tilt
Gear Shift	Forward / Neutral / Reverse
Gear Ratio	2.33:1
Alternator Output	35 Amps
Dry Weight	Approx. 353 lbs
Engine Hours	Not supplied
Warranty	Remaining Factory Warranty

Yamaha's published VF90 specifications confirm the 1.8L displacement, inline-4 configuration, EFI, 90 HP output, 5,000–6,000 RPM range, 35-amp alternator, 2.33:1 gear ratio, electric start with power trim/tilt, and 20" long-shaft option.

FEATURES

• Yamaha VMAX SHO performance technology
• 1.8L inline-4 four-stroke engine
• Electronic fuel injection
• Variable Camshaft Timing
• DOHC four-valve cylinder design
• Electric starting
• Power trim and tilt
• Tiller steering
• 35-amp charging system
• 20" long-shaft configuration
• Forward, neutral, and reverse shifting
• Modern, efficient four-stroke performance

WHY YOU'LL LOVE IT

The Yamaha VMAX SHO VF90 combines strong acceleration and torque with the efficiency and refinement of a modern four-stroke engine. The 1.8L inline-4 platform gives the VF90 excellent power for its class, while Yamaha's VMAX SHO technology is designed around responsive performance and strong mid-range torque. Yamaha performance testing demonstrates the VF90's ability to deliver strong acceleration and efficient cruising performance on appropriately matched boats. With a 2023 model year and factory warranty still remaining, this is an especially attractive choice for buyers looking for a newer used Yamaha without paying the cost of a brand-new engine.

PERFORMANCE & APPLICATIONS

The 90 HP VMAX SHO is well suited for:

• Aluminum fishing boats
• Bass boats
• Fishing boats
• Skiffs
• Utility boats
• Flats boats
• Small center-console boats
• Recreational fishing boats
• Tiller-steer fishing applications

Always verify your boat's maximum rated horsepower and required transom height before purchase.

COMPATIBLE BOAT TYPES

This 20" shaft Yamaha can be suitable for compatible boats designed around a 20" transom configuration, including:

• Aluminum fishing boats
• Bass boats
• Jon boats
• Skiffs
• Utility boats
• Fishing boats
• Small recreational boats

Boat horsepower rating, transom height, steering arrangement, and rigging compatibility should always be confirmed before installation.

CONDITION

Used – Excellent/Newer Model This is a 2023 Yamaha 90 HP VMAX SHO with a 20" shaft and tiller-steer configuration. The listing confirms that the motor still has factory warranty remaining. Exact engine hours were not provided, so buyers should confirm the current hour reading before purchase.

WHAT'S INCLUDED

• Yamaha 90 HP VMAX SHO outboard motor
• 20" shaft
• Tiller-steer configuration
• Electric start
• Power trim & tilt
• Complete ready-to-mount-and-run package
• Remaining factory warranty

WARRANTY

Remaining Factory Warranty This 2023 Yamaha still has factory warranty remaining according to the listing. The exact warranty expiration date and remaining coverage should be confirmed using the engine serial number before purchase. In addition, Alpha Marine Outboards provides a 1-year warranty on used products.

SHIPPING INFORMATION

USA SHIPPING — FREE FREE shipping throughout the USA. INTERNATIONAL SHIPPING — $350 FLAT RATE International shipping is available for a flat rate of $350. CUSTOMER PICKUP Customer pickup is also available.

IMPORTANT BEFORE PURCHASE

• Confirm the engine's current hour reading.
• Confirm the remaining factory warranty using the serial number.
• Verify that your boat requires a 20" shaft.
• Confirm that your boat is rated for 90 HP.
• Verify that a tiller-steer configuration is appropriate for your boat.
• Confirm the exact rigging and accessories included with the motor.
• Professional installation is recommended for proper setup and rigging.

FREQUENTLY ASKED QUESTIONS

What model is this Yamaha 90 HP?

This is a Yamaha VF90 VMAX SHO, part of Yamaha's 1.8L inline-4 VMAX SHO family.

Does it have factory warranty remaining?

Yes. The listing states that the motor still has factory warranty remaining. The exact expiration date should be confirmed using the serial number.

What shaft length is this motor?

This motor has a 20" shaft.

Is this a tiller-steer motor?

Yes. The listing identifies this particular motor as tiller steer.
