New Red Rhino / Yamaha Outboard 1990-2008 6-CYL 2-Stroke 200-300 HP Gearcase Rebuild Kit

Featuring all the parts needed to effectively rebuild an outboard gearcase in one convenient package, our lower unit rebuild packages offer a combination of aftermarket kits, bearings, gears, and seals, all complete with a one-year limited warranty. In addition to the parts detailed below, please email or fill out the form below if you need any other parts to get your motor running again.

This rebuild kit, designed for a Yamaha Outboard 6 Cylinder 2-Stroke Bolt-In Style 200-300 HP Lower Unit, will fit models from 1990 to 2008. You will need to verify the horsepower of your motor.

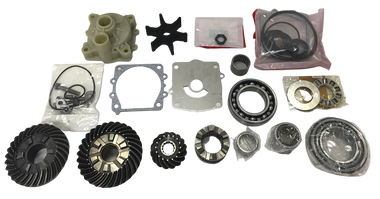

It includes the following items:

Gear Set [Replaces OEM # 60V-45560-00, 61A-45571-00, and 60V-45551-00]

Clutch Dog [Replaces OEM # 60V-45631-00]

Clutch Dog Spring [Replaces OEM # 61A-45633-00-00]

Pinion Nut [Replaces OEM # 90170-16M19]

Water Pump Kit [Replaces OEM # 6G5-W0078-A, 61A-W0078-A2-001-00]

Seal Kit [Replaces OEM # 61A-W0001-21-00]

Bearing Kit [OEM Replacement #s in Parentheses] [Includes Reverse Gear Bearing (93306-210U0-00), Upper Drive Shaft Thrust Bearing (93341-930U9-00), Driveshaft Cap Bearing (93317-330U2-00), Outer Forward Gear Bearing (93332-000W1-00), & Pinion Bearing (93311-832V2-00)]

Aft Carrier Bearing (Will be one of the two below depending on the horsepower of your motor)

• 200-250 HP [Replaces OEM# 93315-430U8-0]
• 300 HP [Replaces OEM# 93315-43064-00]

Additionally, other parts for repair or rebuild are available for separate order if needed.
