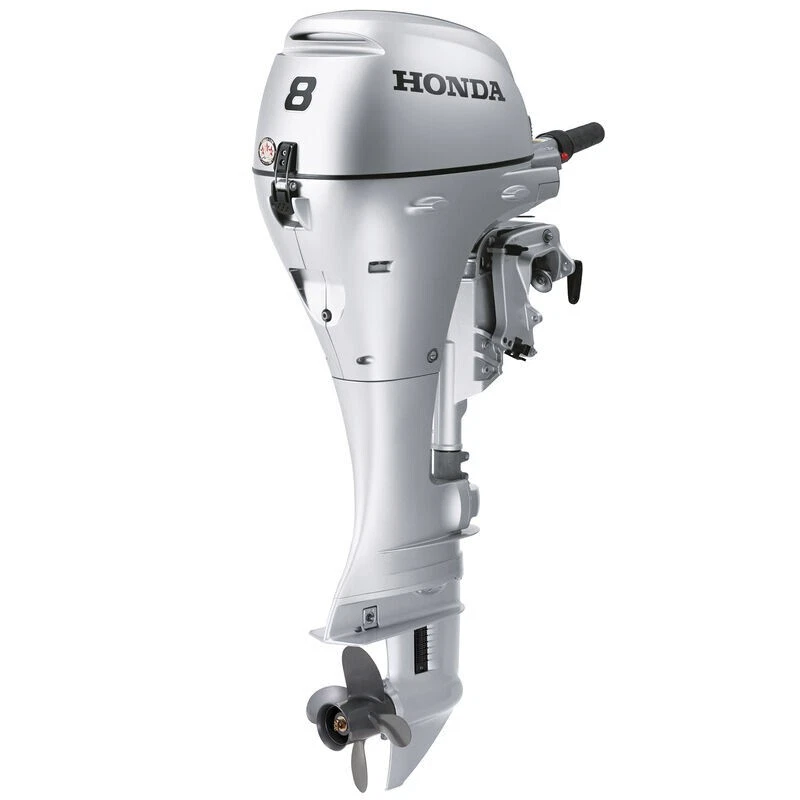

Honda BF8DK3LHA 8HP 4-Stroke Outboard Motor – 20” Shaft – Recoil Start – 4-Blade Prop

Honda BF8DK3LHA 8HP 4-Stroke Outboard Motor

The Honda BF8DK3LHA is a compact, fuel-efficient 8 horsepower 4-stroke outboard motor designed for smooth, reliable performance. Featuring a 20-inch long shaft and recoil (manual) start, this model is ideal for jon boats, aluminum fishing boats, small skiffs, sailboats, and inflatables.

Built with Honda’s proven engineering, the BF8 delivers quiet operation, strong mid-range torque, and dependable everyday use.

---

Engine Specifications

• Engine Type: 4-Stroke SOHC, 2 Cylinders / 4 Valves

• Displacement: 222 cc (13.5 cu. in.)

• Bore x Stroke: 58 mm x 42 mm (2.3″ x 1.7″)

• Full Throttle RPM Range: 4,500 – 5,500 rpm

• Rated Power: 8 HP @ 5,000 rpm

• Cooling System: Water Cooled

• Fuel Delivery: 1 Carburetor

• Ignition System: PGM-IG

• Starting System: Recoil (Manual Start)

• Exhaust: Through Hub

• Lubrication: Wet Sump

• Trim Range: 5-Stage (4°, 8°, 12°, 16°, 20°)

• Tilt Range: 71°

---

Drive & Performance

• Gear Ratio: 2.33:1

• Gear Shift: Forward – Neutral – Reverse (F-N-R)

The optimized gear ratio and 4-blade aluminum propeller provide excellent low-speed thrust and control, making this motor especially effective for small boats and heavy loads.

---

Equipment & Charging

• Alternator with Voltage Regulator: 6-Amp (76-Watt) charging system

• Propeller: 4-Blade Aluminum

• Prop Size: 9-1/4″ x 8″

The built-in charging system helps maintain your onboard battery for electronics and accessories while running.

---

Dimensions & Weight

• Overall Width: 13.6″ (345 mm)

• Transom Height: L-Type (20″ Shaft) – 20″ (508 mm)

• Dry Weight: 98 lbs (44 kg)

Lightweight and compact, the BF8DK3LHA is easy to transport, mount, and operate.

---

Ideal Applications

Perfect for:

• Aluminum fishing boats

• Jon boats

• Small skiffs

• Sailboats

• Dinghies

• Utility boats

Honda’s 4-stroke technology ensures fuel efficiency, smooth operation, and long-term durability.
